Wire Balustrade Kit #100 – Flip Lock System (Metal)
Description / Wire Balustrade Kit #100 – Flip Lock System (Metal)
The Flip Lock Nut combined with a Swage Stud Terminal allows you to create neat, streamlined wire runs between existing metal posts. There is no design on the market like it. It eliminates the requirement for installing rivet nuts and rivet nut tools. All you require is a Flip Lock Nut RHT, swage stud terminal RHT, and then the same LHT fittings at the opposite end of the run. Used with M6 threaded fittings such as swage stud terminals for 3.2mm wire. Requires hydraulic swaging.

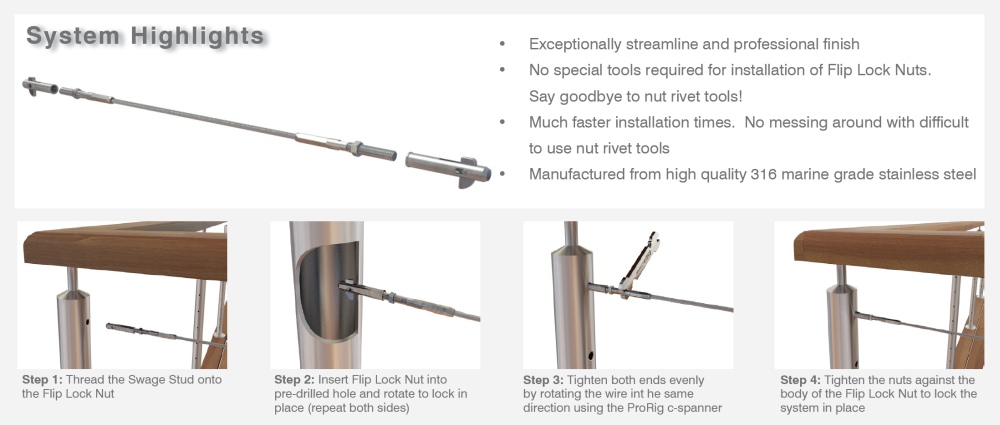

The complete Flip Lock System consists of the following components:
- Flip Lock Nut RHT M6 x 30mm
- Flip Lock Nut LHT M6 x 30mm
- Swage Stud Terminal RHT M6
- Swage Stud Terminal LHT M6
For a bottlescrew tensioner version of the kit see Kit #101.
More Information
| Product Material | Stainless Steel 316 |
|---|---|
| Swaging System | Hydraulic Swaging |
| Post Fixing Material | Metal |
| Section Type | Straight Sections, Angled Sections (eg. Stairs / Ramps) |
| Wire Rope Diameter | 3.2mm |

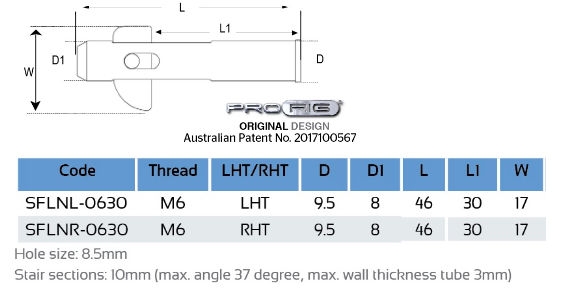

| Product Specifications | Flip Lock Nut
D1: 8mm (drill 8.5mm hole)
 |
| Stock Availability | In Stock |
