Swageless Rapid Lock & Flip Lock Wire Balustrade Kit #103

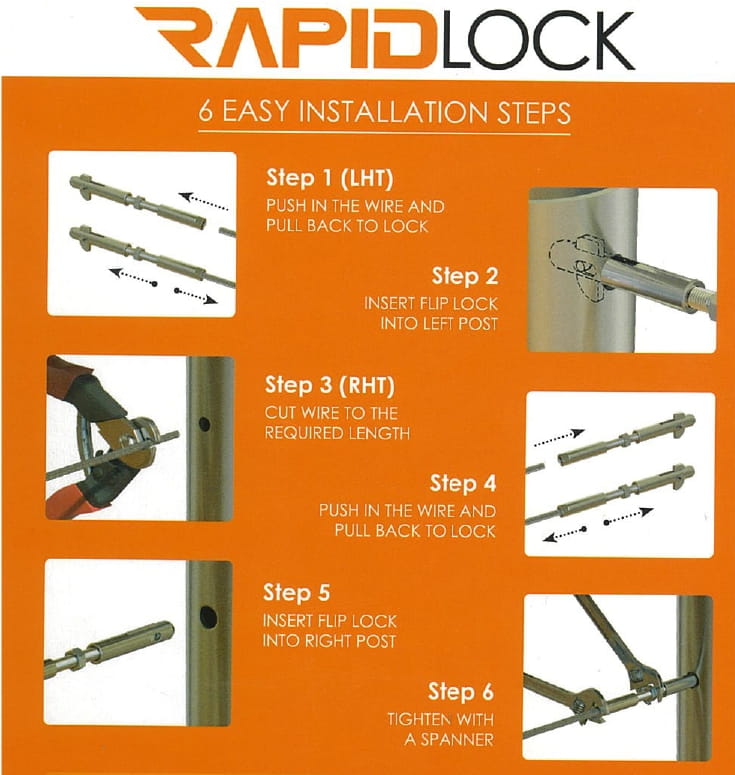

Download Metal Fitting Instructions

The ultimate metal-to-metal post wire balustrade system. Sleek and slimline. They don't come much easier to install than this. No swaging/crimping required, nor any special installation tools; you only need to drill holes in your posts.

Includes :

1x Rapid Lock Swage Stud Terminal M6 x 35mm RHT for 3.2mm Wire AISI 316
1x Rapid Lock Swage Stud Terminal M6 x 35mm LHT for 3.2mm Wire AISI 316
1x Flip Lock Nut RHT M6 x 30mm Stainless Steel 316
1x Flip Lock Nut LHT M6 x 30mm Stainless Steel 316

In addition to this wire balustrade kit, it's essential to purchase the 'unlocking key'. If you need to pull the wire out and re-cut it, you can unlock the wire from the Rapid Lock terminal using the separately purchased Rapid Lock Key available here. After you've inserted the wire into the rapid lock terminal, you can remove it by gently inserting the key. You might need to do this if you need to re-cut the wire to a shorter length.
